Aluminium Tilt and Turn Windows
Thermal break aluminium windows that tilt for ventilation and turn for full access.
Why Choose Aluminium Tilt and Turn Windows
Aluminium tilt and turn windows give you two opening modes in one sash. Rotate the handle 90 degrees and the window swings inward like a casement for easy cleaning and maximum airflow. Rotate it 180 degrees and the top edge tilts inward, creating a secure ventilation gap that keeps rain out and reduces the risk of accidental falls.
The aluminium frame carries a thermal break, a non-conductive barrier between the inner and outer profiles. This break cuts heat transfer through the metal, helping the window hold indoor temperatures steady. For builders and architects, that means a slim, durable frame that still meets modern energy expectations.
WANJIA Hiseng supplies these windows in several configurations, from the high performance 91 series to the value focused 70 series. Each series uses European tilt and turn hardware from brands like ROTO, SIEGENIA, and CMECH. You get the same operating standard found in European windows, manufactured in Foshan and shipped to your site.
Key Specifications
The table below lists the main performance values for the 91 series and 70 series aluminium tilt and turn windows.
| Frame material | 6060-T66 aluminium, 1.8 mm wall thickness |
|---|---|
| Thermal break | Polyamide strip integrated in frame |
| Glass (91 series) | 5+16A+5+16A+5 triple glazing |
| Glass (70 series) | Up to 5+27A+5 double glazing |
| U-value (91 series) | Uw 1.4 W/m²K |
| U-value (70 series) | Uw 2.0 W/m²K |
| Sound reduction (91 series) | Rw 37 dB |
| Sound reduction (70 series) | Rw 30 dB |
| Hardware | ROTO, SIEGENIA, CMECH |
Actual values depend on glass configuration, frame size, and hardware selection.
What You Get
Each aluminium tilt and turn window is built around four practical benefits.
Thermal Break Frame
A polyamide barrier separates the inner and outer aluminium profiles, reducing heat loss and condensation risk on the frame.
European Hardware
Multi-point locking and tilt-turn mechanisms from ROTO, SIEGENIA, or CMECH provide smooth operation and solid sealing.
Flexible Glazing
Choose double or triple glazing with Low-E coatings, argon fill, and options for tempered or laminated glass.
Built-in Blinds Option

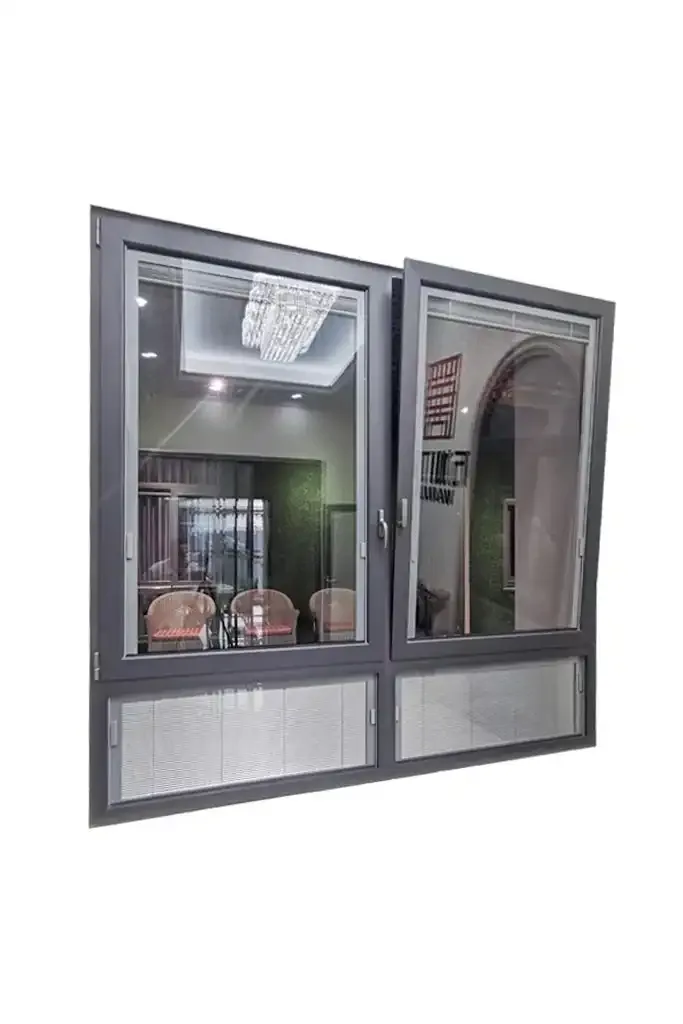

The 70 series can be ordered with blinds integrated inside the glass cavity, keeping dust out and simplifying cleaning.
Built for North American Projects
Dealers and builders often ask how a Chinese manufactured window fits a North American job site. The answer is in the details. The 91 series aluminium tilt and turn window carries ENERGY STAR, NFRC, and CSA certifications. That means the thermal and structural performance has been verified by independent bodies recognized in the US and Canada. You can specify it with confidence for residential or light commercial work.
The frame uses 6060-T66 aluminium with a 1.8 mm wall thickness and 2.0 mm local reinforcement at stress points. This keeps the profile slim while handling wind loads and daily use. WANJIA Hiseng ships worldwide in wooden crates, with installation videos and remote guidance for your crew. Lead time is usually 25-30 business days, and a quote comes back within 3 hours.
Product Views
Related Products and Guides
Compare this series with other tilt and turn options or learn more about low U-value configurations.
- German Windows Tilt and TurnSee how German hardware brands define the tilt and turn operating standard.
- Aluminum Clad Wood Tilt and Turn WindowsWood inside, aluminium outside, with the same tilt and turn hardware.
- Passive House WindowsA guide to low U-value glazing and frame choices for energy focused builds.
Questions buyers ask
What is the difference between the 91 series and 70 series aluminium tilt and turn windows?
The 91 series is the higher performance option with Uw 1.4 W/m²K and Rw 37 dB, using triple glazing as standard. The 70 series offers Uw 2.0 W/m²K and Rw 30 dB, with glass up to 5+27A+5 and a built-in blinds option. Choose the 91 series for colder climates or stricter energy codes, and the 70 series for milder zones or budget conscious projects.
Are aluminium tilt and turn windows suitable for high-rise buildings?
Yes. The tilt position allows ventilation without opening the sash fully, which is safer on upper floors. The 91 series frame uses 6060-T66 aluminium with 2.0 mm local reinforcement, and the multi-point locking hardware keeps the sash pressed against the seals. Always confirm wind load requirements with your structural engineer before ordering.
Can I get aluminium tilt and turn windows with Low-E glass?
Yes. Both series can be ordered with Low-E coatings on the glass. Low-E coatings reduce radiant heat transfer, which helps lower the overall U-value. For the 91 series, the standard configuration is 5+16A+5+16A+5 with Low-E on at least one surface. The 70 series can be upgraded to Low-E double glazing.
How long does delivery take for aluminium tilt and turn windows?
Production usually takes 25-30 business days, depending on the design, materials, and order volume. After shipment, we send a tracking number. Windows are packed in wooden boxes and frames. Installation videos and guidance are provided after the goods arrive, and our technical team can assist with measurement solutions before you order.
